IMDS

helm repo add projectcalico https://docs.tigera.io/calico/charts
kubectl create namespace tigera-operator
helm install calico projectcalico/tigera-operator --version v3.29.1 --namespace tigera-operator
Shell
복사

curl -L https://github.com/projectcalico/calico/releases/download/v3.29.1/calicoctl-linux-amd64 -o kubectl-calico
chmod +x kubectl-calico
sudo mv kubectl-calico /usr/local/bin/calicoctl
Shell
복사

apiVersion: v1
kind: Pod
metadata:
  name: aws
  namespace: default
spec:
  containers:
  - name: aws
    image: amazon/aws-cli:latest
    command:
      - sleep
      - "3600"
    imagePullPolicy: IfNotPresent
  restartPolicy: Always
YAML
복사

kubectl apply -f aws-cli.yaml
Shell
복사

kubectl exec -it aws -- aws sts get-caller-identity
Shell
복사

INSTANCE1_ID=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=skills-app-node" --query 'Reservations[0].Instances[0].InstanceId' --output json | jq -r .)
INSTANCE2_ID=$(aws ec2 describe-instances --filters "Name=tag:Name,Values=skills-app-node" --query 'Reservations[1].Instances[0].InstanceId' --output json | jq -r .)
aws ec2 describe-instances --instance-ids $INSTANCE1_ID --output table --query 'Reservations[].Instances[].[{EC2: InstanceId, Token: MetadataOptions.HttpTokens, State: MetadataOptions.State, HopCount: MetadataOptions.HttpPutResponseHopLimit}]'
aws ec2 describe-instances --instance-ids $INSTANCE2_ID --output table --query 'Reservations[].Instances[].[{EC2: InstanceId, Token: MetadataOptions.HttpTokens, State: MetadataOptions.State, HopCount: MetadataOptions.HttpPutResponseHopLimit}]'
Shell
복사

apiVersion: crd.projectcalico.org/v1
kind: GlobalNetworkPolicy
metadata:
  name: block-imds-access
spec:
  selector: all()
  egress:
  - action: Deny
    protocol: TCP
    destination:
      nets:
      - 169.254.169.254/32
  - action: Allow
    destination:
      nets:
      - 0.0.0.0/0
YAML
복사

kubectl apply -f restrict-imds-call.yaml
Shell
복사

•

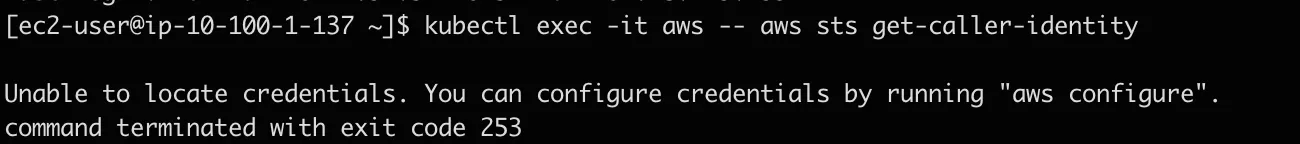

IMDS 에 대한 접근이 차단

kubectl exec -it aws -- aws sts get-caller-identity
Shell
복사

Hop Count 값을 이용하여 차단

kubectl delete -f restrict-imds-call.yaml
Shell
복사

•

접근 허용되어야 함

kubectl exec -it aws -- aws sts get-caller-identity
Shell
복사

•

IMDS Hop Count 를 기존 설정값이 "2" 에서 "1" 로 변경

aws ec2 modify-instance-metadata-options --instance-id $INSTANCE1_ID --http-tokens required --http-endpoint enabled --http-put-response-hop-limit 1
aws ec2 modify-instance-metadata-options --instance-id $INSTANCE2_ID --http-tokens required --http-endpoint enabled --http-put-response-hop-limit 1
Shell
복사

•

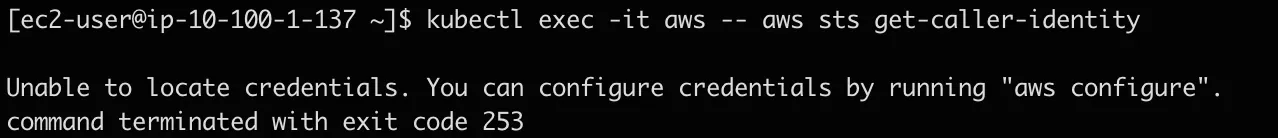

IMDS 에 대한 접근이 차단

kubectl exec -it aws -- aws sts get-caller-identity
Shell
