Mimir with Grafana

CLUSTER_NAME=<CLUSTER_NAME> REGION=ap-northeast-2 S3_BUCKET_NAME=mimir-s3-bucket-0000 ACCOUNT_ID=$(aws sts get-caller-identity --query "Account" --output text)

cat > grafana-tempo-s3-policy.json <<EOF { "Version": "2012-10-17", "Statement": [ { "Sid": "MimirStorage", "Effect": "Allow", "Action": [ "s3:ListBucket", "s3:PutObject", "s3:GetObject", "s3:DeleteObject" ], "Resource": [ "arn:aws:s3:::${S3_BUCKET_NAME}", "arn:aws:s3:::${S3_BUCKET_NAME}/*" ] } ] } EOF

aws iam create-policy \ --policy-name MimirPolicy \ --policy-document file://grafana-tempo-s3-policy.json

eksctl create iamserviceaccount \ --name mimir-sa \ --namespace mimir-test \ --cluster $CLUSTER_NAME \ --attach-policy-arn arn:aws:iam::$ACCOUNT_ID:policy/MimirPolicy \ --approve \ --region $REGION \ --role-name MimirRole

helm repo add grafana-operator https://grafana.github.io/helm-charts helm repo update helm install grafana-operator grafana/grafana-agent-operator -n grafana --create-namespace

helm repo add grafana https://grafana.github.io/helm-charts helm repo update helm install grafana grafana/grafana -n grafana

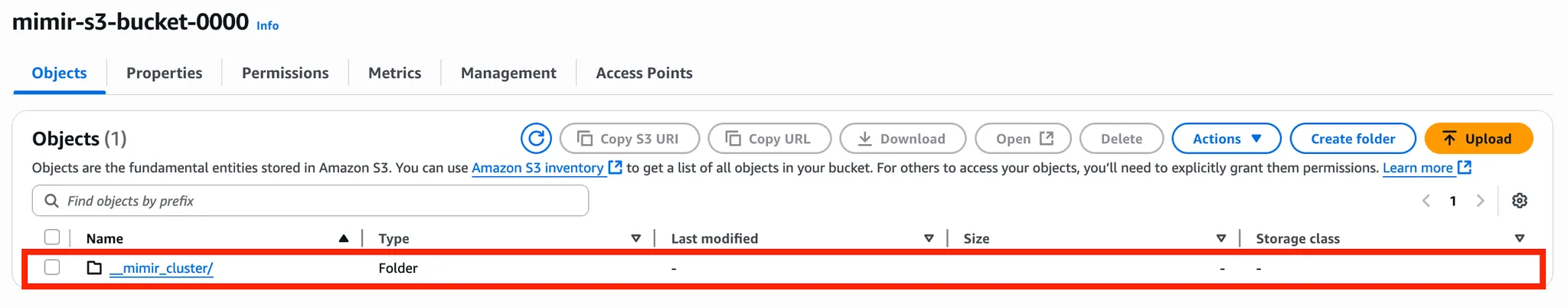

cat << EOF > mimir-values.yaml mimir: structuredConfig: blocks_storage: backend: s3 s3: bucket_name: mimir-s3-bucket-0000 endpoint: s3.ap-northeast-2.amazonaws.com region: ap-northeast-2 serviceAccount: create: false name: "mimir-sa" minio: enabled: false metaMonitoring: serviceMonitor: enabled: true grafanaAgent: enabled: true installOperator: true metrics: additionalRemoteWriteConfigs: - url: "http://mimir-nginx.mimir-test.svc:80/api/v1/push" EOF

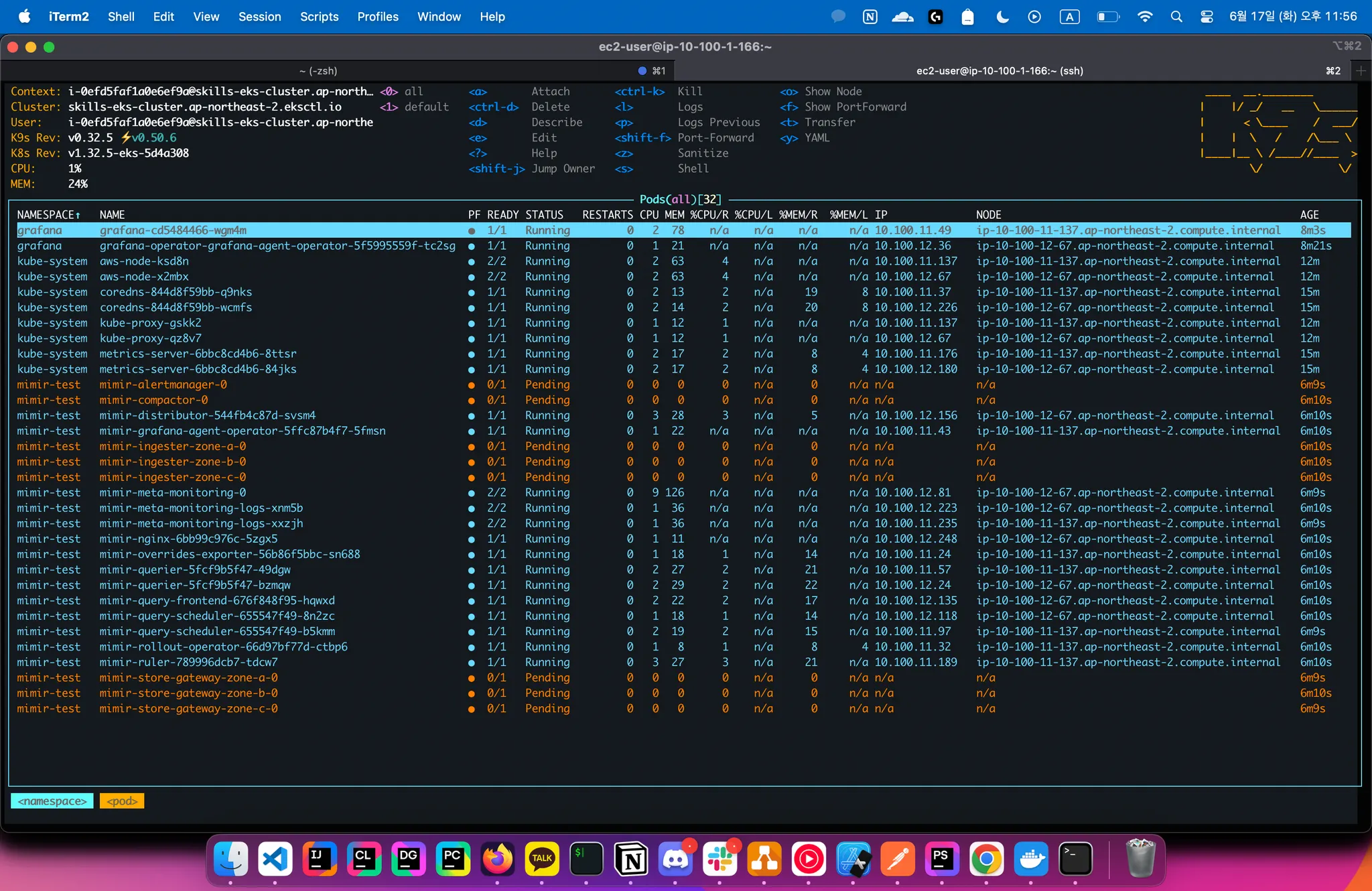

helm upgrade -i -n mimir-test mimir grafana/mimir-distributed --create-namespace -f mimir-values.yaml

kubectl get secret --namespace grafana grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo

kubectl port-forward -n grafana svc/grafana 3000:80 --address=0.0.0.0
