Simple App

curl -L https://istio.io/downloadIstio | sh -
cd istio-1.27.0
export PATH=$PWD/bin:$PATH
istioctl version
Shell
복사

istioctl install --set profile=default -y
Shell
복사

•

Envoy 사이드카 Injection label 설정

kubectl label namespace default istio-injection=enabled
Shell
복사

# Nginx Service
apiVersion: v1
kind: Service
metadata:
  name: nginx
  labels:
    app: nginx
    service: nginx
spec:
  ports:
    - port: 80
      name: http
  selector:
    app: nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: service-nginx
  labels:
    account: nginx
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-v1
  labels:
    app: nginx
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
      version: v1
  template:
    metadata:
      labels:
        app: nginx
        version: v1
    spec:
      serviceAccountName: service-nginx
      containers:
        - name: nginx
          image: nginx:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
---
# Httpd Service
apiVersion: v1
kind: Service
metadata:
  name: httpdpage
  labels:
    app: httpdpage
    service: httpdpage
spec:
  ports:
    - port: 80
      name: http
  selector:
    app: httpdpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: service-httpdpage
  labels:
    account: httpdpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: httpdpage-v1
  labels:
    app: httpdpage
    version: v1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: httpdpage
      version: v1
  template:
    metadata:
      labels:
        app: httpdpage
        version: v1
    spec:
      serviceAccountName: service-httpdpage
      containers:
        - name: httpd
          image: httpd:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
          volumeMounts:
            - name: tmp
              mountPath: /tmp
      volumes:
        - name: tmp
          emptyDir: {}
YAML
복사

kubectl apply -f deploy.yaml
Shell
복사

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: service-gateway
spec:
  selector:
    istio: ingressgateway
  servers:
    - port:
        number: 80
        name: http
        protocol: HTTP
      hosts:
        - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpdpage-nginx
spec:
  hosts:
    - "*"
  gateways:
    - service-gateway
  http:
    - route:
        - destination:
            host: httpdpage
            port:
              number: 80
          weight: 50
        - destination:
            host: nginx
            port:
              number: 80
          weight: 50
YAML
복사

kubectl apply -f gw-vs.yaml
Shell
복사

apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  values:
    gateways:
      istio-ingressgateway:
        serviceAnnotations:
          service.beta.kubernetes.io/aws-load-balancer-type: "nlb"
YAML
복사

istioctl upgrade -f nlb.yaml
Shell
복사

•

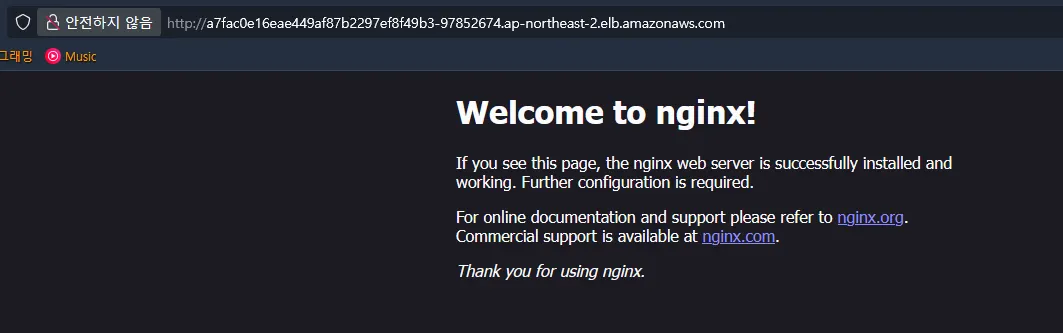

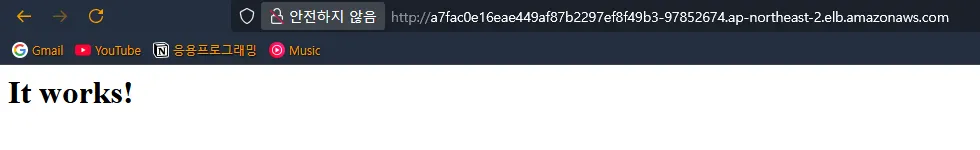

httpd, nginx만 출력되는 모습 확인 가능

특정 버전만 서비스 하기

•

VirtualService에서 subset을 지정하면 특정 버전만 서비스 할 수 있게 된다. 생성한 nginx는 총 2
가지 버전이 있는데 v2만 서비스 할 수 있게끔 구성하였다

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-v2
  labels:
    app: nginx
    version: v2
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
      version: v2
  template:
    metadata:
      labels:
        app: nginx
        version: v2
    spec:
      serviceAccountName: service-nginx
      containers:
        - name: nginx
          image: nginx:latest
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
          volumeMounts:
            - name: html-volume
              mountPath: /usr/share/nginx/html
      volumes:
        - name: html-volume
          configMap:
            name: nginx-config
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nginx-config
data:
  index.html: |
    <html>
      <body>
        <h1>Hello, world!</h1>
      </body>
    </html>
YAML
복사

kubectl apply -f v2.yaml
Shell
복사

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: httpdpage
spec:
  host: httpdpage
  subsets:
    - name: v1
      labels:
        version: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: nginx
spec:
  host: nginx
  subsets:
    - name: v1
      labels:
        version: v1
    - name: v2
      labels:
        version: v2
YAML
복사

kubectl apply -f destination-rule.yaml
Shell
복사

apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: httpdpage-nginx
spec:
  hosts:
    - "*"
  gateways:
    - service-gateway
  http:
    - route:
        - destination:
            host: httpdpage
            subset: v1
            port:
              number: 80
          weight: 50
        - destination:
            host: nginx
            subset: v2
            port:
              number: 80
          weight: 50
YAML
복사

kubectl apply -f vs.yaml
Shell
복사

apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  values:
    gateways:
      istio-ingressgateway:
        serviceAnnotations:
          service.beta.kubernetes.io/aws-load-balancer-type: "nlb"
YAML
복사

istioctl upgrade -f nlb.yaml
Shell
복사

•

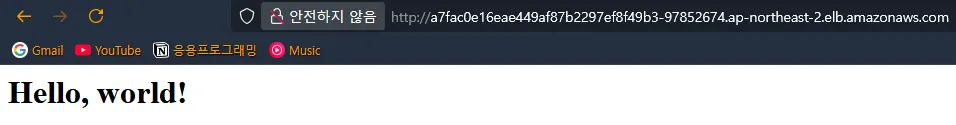

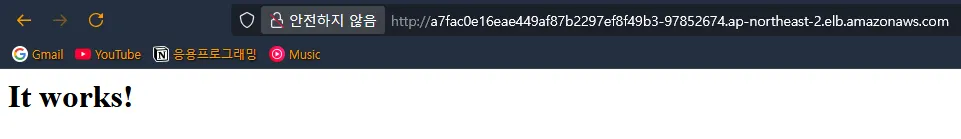

nlb 접근시 hello, world 페이지와 httpd 페이지만 표시되는걸 확인할 수 있다.
